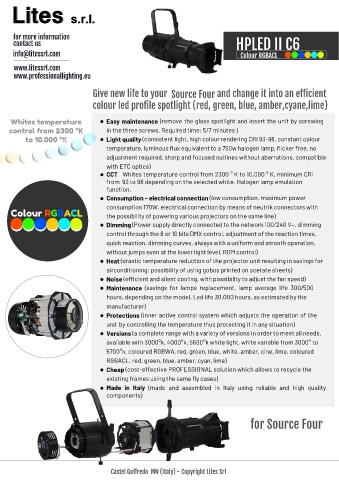

Page 13 - Brochure HPLED II

Lites s.r.l.
Lites s.r.l.
for more information
contact us
info@litessrl.com
www.litessrl.com
www.professionallighting.eu
Give new life to your Source Four and change it into an efficient
colour led profile spotlight (red, green, blue, amber,cyane,lime)
Whites temperature
control from 2300 °K
to 10.000 °K 10.000°k • Light quality (consistent light, high colour rendering CRI 93-98, constant colour
Colour RGBACL
HPLED II C6
Colour RGBACL
• Easy maintenance (remove the glass spotlight and insert the unit by screwing
in the three screws. Required time: 5/7 minutes )
temperature, luminous flux equivalent to a 750w halogen lamp, flicker free, no
adjustment required, sharp and focused outlines without aberrations, compatible
with ETC optics)
• CCT Whites temperature control from 2300 ° K to 10,000 ° K, minimum CRI
from 93 to 98 depending on the selected white. Halogen lamp emulation
function.
• Consumption – electrical connection (low consumption, maximum power
consumption 170W, electrical connection by means of neutrik connectors with
the possibility of powering various projectors on the same line)
• Dimming (Power supply directly connected to the network 100/240 V~, dimming
control through the 8 or 16 bits DMX control, adjustment of the reaction times,
quick reaction, dimming curves, always with a uniform and smooth operation,
without jumps even at the lower light level, RDM control)
• Heat (drastic temperature reduction of the projector unit resulting in savings for
airconditioning; possibility of using gobos printed on acetate sheets)
• Noise (efficient and silent cooling, with possibility to adjust the fan speed)
• Maintenance (savings for lamps replacement, lamp average life 300/500
hours, depending on the model, Led life 30,000 hours, as estimated by the
manufacturer)
• Protections (inner active control system which adjusts the operation of the
unit by controlling the temperature thus protecting it in any situation)
• Versions (a complete range with a variety of versions in order to meet all needs,
available with 3000°k, 4000°k, 5600°k white light, white variable from 3000° to
5700°k, coloured RGBWA, red, green, blue, white, amber, cine, lime, coloured
RGBACL, red, green, blue, amber, cyan, lime)
• Cheap (cost-effective PROFESSIONAL solution which allows to recycle the
existing frames using the same fly cases)
• Made in Italy (made and assembled in Italy using reliable and high quality
components)
for Source Four
