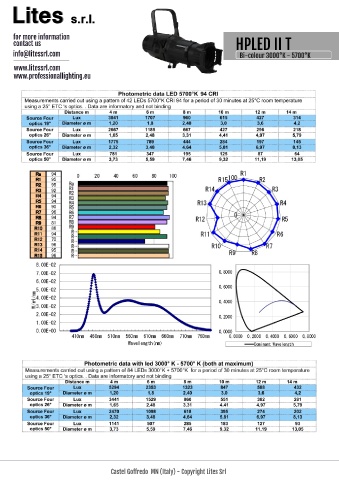

Page 8 - Brochure HPLED II

Lites s.r.l.
Lites s.r.l.

for more information
contact us HPLED II T
info@litessrl.com Bi-colour 3000°K - 5700°K

www.litessrl.com
www.professionallighting.eu

Photometric data LED 5700°K 94 CRI
Measurements carried out using a pattern of 42 LEDs 5700°K CRI 94 for a period of 30 minutes at 25°C room temperature
using a 25° ETC ‘s optics. . Data are informatory and not binding
Distance m 4 m 6 m 8 m 10 m 12 m 14 m
Source Four Lux 3841 1707 960 615 427 314
optics 19° Diameter ø m 1,20 1,8 2,40 3,0 3,6 4,2
Source Four Lux 2667 1185 667 427 296 218
optics 26° Diameter ø m 1,65 2,48 3,31 4,41 4,97 5,79
Source Four Lux 1775 789 444 284 197 145
optics 36° Diameter ø m 2,32 3,48 4,64 5,81 6,97 8,13
Source Four Lux 781 347 195 125 87 64
optics 50° Diameter ø m 3,73 5,59 7,46 9,32 11,19 13,05

Photometric data with led 3000° K - 5700° K (both at maximum)
Measurements carried out using a pattern of 84 LEDs 3000°K + 5700°K for a period of 30 minutes at 25°C room temperature
using a 25° ETC ‘s optics. . Data are informatory and not binding
Distance m 4 m 6 m 8 m 10 m 12 m 14 m
Source Four Lux 5294 2353 1323 847 588 432
optics 19° Diameter ø m 1,20 1,8 2,40 3,0 3,6 4,2
Source Four Lux 3441 1529 860 551 382 281
optics 26° Diameter ø m 1,65 2,48 3,31 4,41 4,97 5,79
Source Four Lux 2470 1098 618 395 274 202
optics 36° Diameter ø m 2,32 3,48 4,64 5,81 6,97 8,13
Source Four Lux 1141 507 285 183 127 93
optics 50° Diameter ø m 3,73 5,59 7,46 9,32 11,19 13,05

Castel Goffredo MN (Italy) - Copyright Lites Srl
