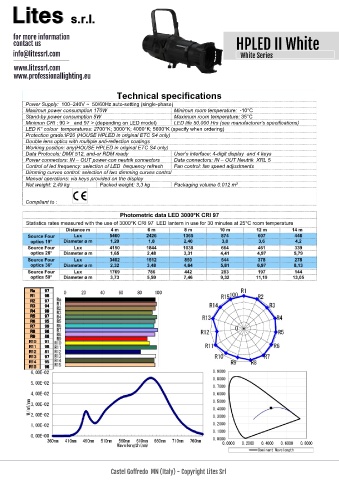

Page 3 - Brochure HPLED II
P. 3

Lites s.r.l.
     Lites s.r.l.

      for more information
      contact us                                                                    HPLED II White                                                              White Series

                                          Technical specifications
          Power Supply:  100–240V ~  50/60Hz auto-setting (single-phase)
          Maximun power consumption 170W                      Minimun room temperature:  -10°C
          Stand-by power consumption 5W                       Maximum room temperature: 35°C
          Minimun CRI : 90 >   and 97 > (depending on LED model)   LED life 50.000 Hrs (see manufacturer’s specifications)
          LED K° colour  temperatures: 2700°K; 3000°K; 4000°K; 5600°K (specify when ordering)
          Protection grade:IP20 (HOUSE HPLED in original ETC S4 only)
          Double lens optics with multiple anti-reflection coatings
          Working position: any(HOUSE HPLED in original ETC S4 only)
          Data Protocols: DMX 512, and-or RDM ready           User’s interface: 4-digit display  and 4 keys
          Power connectors: IN – OUT power-con neutrik connectors   Data connectors: IN – OUT Neutrik  XRL 5
          Control of led frequency: selection of LED  frequency refresh   Fan control: fan speed adjustments
          Dimming curves control: selection of two dimming curves control
          Manual operations: via keys provided on the display
          Net weight: 2,49 kg       Packed weight: 3,3 kg     Packaging volume 0.012 m 3

          Compliant to :
