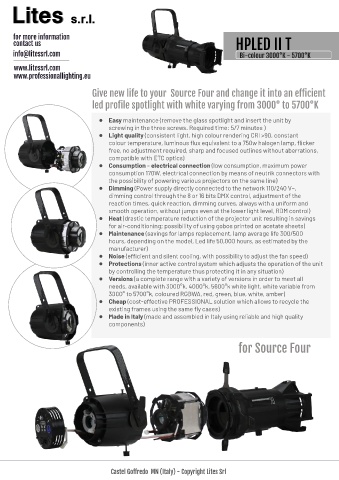

Page 6 - Brochure HPLED II
P. 6

Lites s.r.l.
     Lites s.r.l.


      for more information
      contact us                                                                    HPLED II T
      info@litessrl.com                                                              Bi-colour 3000°K - 5700°K

      www.litessrl.com
      www.professionallighting.eu

                                 Give new life to your  Source Four and change it into an efficient

                                 led profile spotlight with white varying from 3000° to 5700°K


                                    • Easy maintenance (remove the glass spotlight and insert the unit by
                                       screwing in the three screws. Required time: 5/7 minutes )
                                    • Light quality (consistent light, high colour rendering CRI >90, constant
                                       colour temperature, luminous flux equivalent to a 750w halogen lamp, flicker
                                       free, no adjustment required, sharp and focused outlines without aberrations,
                                       compatible with ETC optics)
                                    • Consumption – electrical connection (low consumption, maximum power
                                       consumption 170W, electrical connection by means of neutrik connectors with
                                       the possibility of powering various projectors on the same line)
                                    • Dimming (Power supply directly connected to the network 110/240 V~,
                                       dimming control through the 8 or 16 bits DMX control, adjustment of the
                                       reaction times, quick reaction, dimming curves, always with a uniform and
                                       smooth operation, without jumps even at the lower light level, RDM control)
                                    • Heat (drastic temperature reduction of the projector unit resulting in savings
                                       for air-conditioning; possibility of using gobos printed on acetate sheets)
                                    • Maintenance (savings for lamps replacement, lamp average life 300/500
                                       hours, depending on the model, Led life 50,000 hours, as estimated by the
                                       manufacturer)
                                    • Noise (efficient and silent cooling, with possibility to adjust the fan speed)
                                    • Protections (inner active control system which adjusts the operation of the unit
                                       by controlling the temperature thus protecting it in any situation)
                                    • Versions (a complete range with a variety of versions in order to meet all
                                       needs, available with 3000°k, 4000°k, 5600°k white light, white variable from
                                       3000° to 5700°k, coloured RGBWA, red, green, blue, white, amber)
                                    • Cheap (cost-effective PROFESSIONAL solution which allows to recycle the
                                       existing frames using the same fly cases)
                                    • Made in Italy (made and assembled in Italy using reliable and high quality
                                       components)



                                                                                     for Source Four

























                                        Castel Goffredo  MN (Italy) - Copyright Lites Srl
