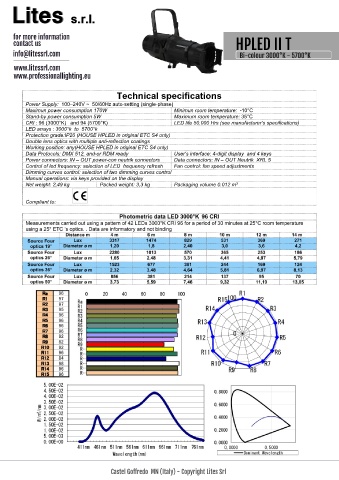

Page 7 - Brochure HPLED II

Lites s.r.l.
Lites s.r.l.

for more information
contact us HPLED II T
info@litessrl.com Bi-colour 3000°K - 5700°K

www.litessrl.com
www.professionallighting.eu

Technical specifications
Power Supply: 100–240V ~ 50/60Hz auto-setting (single-phase)
Maximun power consumption 170W Minimun room temperature: -10°C
Stand-by power consumption 5W Maximum room temperature: 35°C
CRI : 96 (3000°K) and 94 (5700°K) LED life 50.000 Hrs (see manufacturer’s specifications)
LED arrays : 3000°k to 5700°k
Protection grade:IP20 (HOUSE HPLED in original ETC S4 only)
Double lens optics with multiple anti-reflection coatings
Working position: any(HOUSE HPLED in original ETC S4 only)
Data Protocols: DMX 512, and-or RDM ready User’s interface: 4-digit display and 4 keys
Power connectors: IN – OUT power-con neutrik connectors Data connectors: IN – OUT Neutrik XRL 5
Control of led frequency: selection of LED frequency refresh Fan control: fan speed adjustments
Dimming curves control: selection of two dimming curves control
Manual operations: via keys provided on the display
Net weight: 2,49 kg Packed weight: 3,3 kg Packaging volume 0.012 m 3

Compliant to:

Photometric data LED 3000°K 96 CRI
Measurements carried out using a pattern of 42 LEDs 3000°K CRI 96 for a period of 30 minutes at 25°C room temperature
using a 25° ETC ‘s optics. . Data are informatory and not binding
Distance m 4 m 6 m 8 m 10 m 12 m 14 m
Source Four Lux 3317 1474 829 531 369 271
optics 19° Diameter ø m 1,20 1,8 2,40 3,0 3,6 4,2
Source Four Lux 2280 1013 570 365 253 186
optics 26° Diameter ø m 1,65 2,48 3,31 4,41 4,97 5,79
Source Four Lux 1523 677 381 244 169 124
optics 36° Diameter ø m 2,32 3,48 4,64 5,81 6,97 8,13
Source Four Lux 856 381 214 137 95 70
optics 50° Diameter ø m 3,73 5,59 7,46 9,32 11,19 13,05

Castel Goffredo MN (Italy) - Copyright Lites Srl
