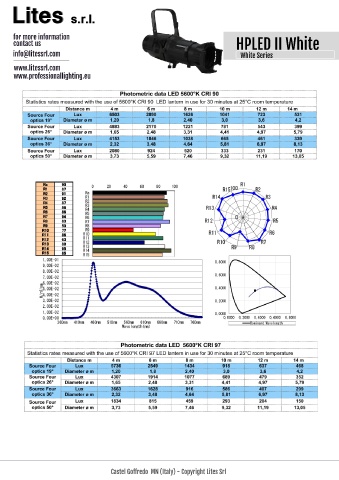

Page 4 - Brochure HPLED II

Lites s.r.l.
Lites s.r.l.

for more information
contact us HPLED II White
info@litessrl.com White Series

www.litessrl.com
www.professionallighting.eu

Photometric data LED 5600°K CRI 90
Statistics rates measured with the use of 5600°K CRI 90 LED lantern in use for 30 minutes at 25°C room temperature
Distance m 4 m 6 m 8 m 10 m 12 m 14 m
Source Four Lux 6503 2890 1626 1041 723 531
optics 19° Diameter ø m 1,20 1,8 2,40 3,0 3,6 4,2
Source Four Lux 4883 2170 1221 781 543 399
optics 26° Diameter ø m 1,65 2,48 3,31 4,41 4,97 5,79
Source Four Lux 4153 1846 1038 665 461 339
optics 36° Diameter ø m 2,32 3,48 4,64 5,81 6,97 8,13
Source Four Lux 2080 924 520 333 231 170
optics 50° Diameter ø m 3,73 5,59 7,46 9,32 11,19 13,05

Photometric data LED 5600°K CRI 97
Statistics rates measured with the use of 5600°K CRI 97 LED lantern in use for 30 minutes at 25°C room temperature
Distance m 4 m 6 m 8 m 10 m 12 m 14 m
Source Four Lux 5736 2549 1434 918 637 468
optics 19° Diameter ø m 1,20 1,8 2,40 3,0 3,6 4,2
Source Four Lux 4307 1914 1077 689 479 352
optics 26° Diameter ø m 1,65 2,48 3,31 4,41 4,97 5,79
Source Four Lux 3663 1628 916 586 407 299
optics 36° Diameter ø m 2,32 3,48 4,64 5,81 6,97 8,13
Source Four Lux 1834 815 459 293 204 150
optics 50° Diameter ø m 3,73 5,59 7,46 9,32 11,19 13,05

Castel Goffredo MN (Italy) - Copyright Lites Srl
